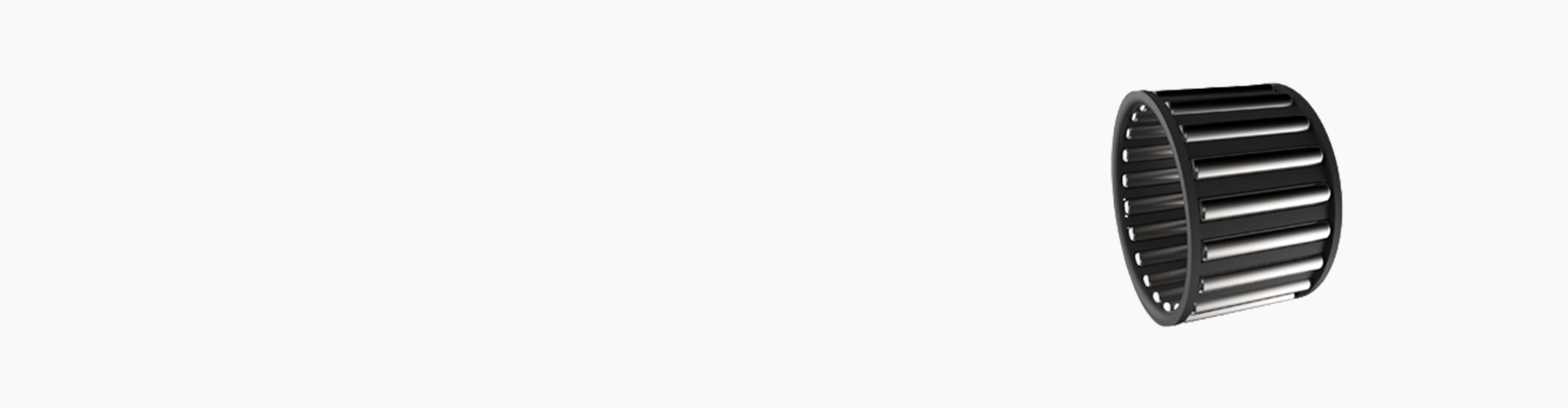

Needle Roller Bearing

Needle roller bearings, developed by THB, as one of the most professional needle roller manufacturers in China, have the following advantages:

The rolling elements of needle roller bearings are a kind of cylindrical rollers, very slender (the length of the roller is 3-10 times the diameter, and the diameter is generally not greater than 5mm), so the radial structure is compact. When its inner diameter and load capacity are the same as other types of bearings, its radial section is the smallest, especially suitable for the shafting design with limited radial installation dimensions. According to different applications, needle roller bearings without inner ring or needle roller and cage assembly can be selected. At the same time, the journal surface and seat hole surface matching the bearing are directly used as the inner and outer rolling surfaces of the bearing. In order to ensure that the load capacity and running performance are the same as the bearing with races, the hardness, machining accuracy and surface quality of the raceway surface of the shaft or housing hole should be similar to the raceways of the bearings with rings. This kind of bearing can only bear radial load.

Generally speaking, needle roller bearings can be divided into several types: needle roller and cage assembly, drawn cup needle roller bearing, machined needle roller bearing and combined needle roller bearing.

The installation of full complement needle roller bearings is usually carried out using auxiliary sleeves. At this time, the auxiliary roller or auxiliary sleeve supports the needle roller to prevent it from falling out, and the journal raises the needle roller with its own chamfer. As the needle bearing moves inward on the journal, the auxiliary roller or the auxiliary sleeve will withdraw slowly until it is installed in the working position. The outer diameter of the auxiliary roller and auxiliary sleeve should be 0.1-0.3mm smaller than the shaft diameter. When installing, first coat the inner surface of the bearing outer ring with grease, stick the needle roller close to the inner surface (there should be a gap when inserting the last needle), and then use the auxiliary roller instead of the journal or inner ring of the bearing. Or push the auxiliary sleeve into the inscribed circle composed of needle rollers, and align its end face with the end face of the mounting shaft or the end face of the inner ring of the bearing that has been installed on the shaft, and then tap it with a press or a hand hammer to apply pressure. Needle roller bearings can also be installed in this way, that is, apply a thin layer of lubricating oil to the outer diameter of the auxiliary sleeve and insert it into the outer ring of the bearing, so that the outer diameter of the auxiliary sleeve and the outer ring raceway of the bearing form an annular space, and then install needle rollers in the annular space. After the needle roller is installed, use the working shaft to push out the auxiliary sleeve. For needle roller bearings without inner ring or outer ring, during installation, first apply a thin layer of grease to the rolling surface of the shaft or housing hole, and place the needles on the grease at the installation site in turn. There should be a gap when placing the last needle. On the circumference of the needle bearing, it is not advisable to squeeze the last needle in, or miss one needle, because the bearing will be stuck and unable to rotate during hard squeezing; when there is needles missing, the gap will be too large, which will easily cause the needle rollers to twist and break when the it is running. For needle roller bearings with a stamped outer ring, they are not allowed to be hammered and installed because of the extremely thin outer ring wall, and the needles should be pressed in by pressing machine. Because the pressure is uneven when hitting by the hand hammer, it is easy to cause locally deformation of the outer ring of the needle roller bearing.
