CRBF 108 AT

CRBF 108 AT Cross Cylindrical Roller Bearing

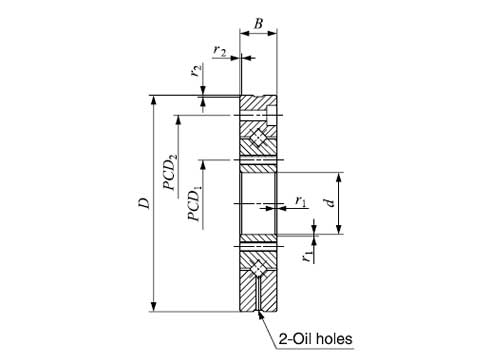

Specifications of CRBF 108 AT Cross Cylindrical Roller Bearing


Shaft diameter(mm)10
Identification number(Open type)CRBF108AT
Weight(Ref.)(kg)0.12
Boundary dim(mm)Boundary dim(d)10
Boundary dim(D)52
Boundary dim(B)8
Boundary dim(r1min(1))0.3
Boundary dim(r2min(1))0.3
Mounting holes(mm)Mounting holes(PCD1)16
Mounting holes(Inner ring Mounting holes)4-M3 through
Mounting holes(Outer ring Mounting holes)6-φ3.4 through φ6.5 counter bore depth 3.3
Mounting holes(PCD2)42
Mounting dimensions(da)24
Mounting dimensions(Da)31
Basic dynamic load rating(N)Basic dynamic load rating(C)2910
Basic satic load rating(C0)2430
Shaft diameter(mm)10
