CRBF 108 AT UU

CRBF 108 AT UU Cross Cylindrical Roller Bearing

Specifications of CRBF 108 AT UU Cross Cylindrical Roller Bearing


Shaft diameter(mm)10
Identification number(Two side seals type)CRBF108ATUU
Weight(Ref.)(kg)0.12

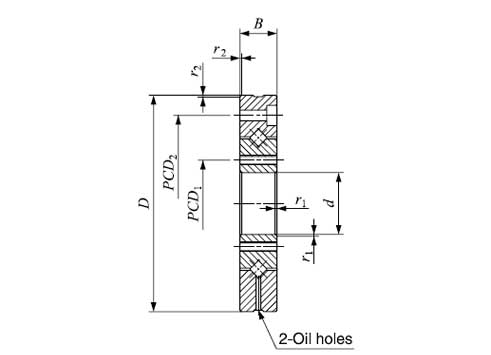

Boundary dim(mm)Boundary dim(d)10
Boundary dim(D)52
Boundary dim(B)8
Boundary dim(r1min(1))0.3
Boundary dim(r2min(1))0.3
Mounting holes(mm)Mounting holes(PCD1)16
Mounting holes(Inner ring Mounting holes)4-M3 through
Mounting holes(Outer ring Mounting holes)6-φ3.4 through
φ6.5 counter bore depth 3.3
Mounting holes(PCD2)42
Mounting dimensions(da)24
Mounting dimensions(Da)31
Basic dynamic load rating(N)Basic dynamic load rating(C)2910
Basic satic load rating(C0)2430
Shaft diameter(mm)10
