CRBF 2012 AT UU

CRBF 2012 AT UU Cross Cylindrical Roller Bearing

Specifications of CRBF 2012 AT UU Cross Cylindrical Roller Bearing


Shaft diameter(mm)20
Identification number(Two side seals type)CRBF2012ATUU
Weight(Ref.)(kg)0.31

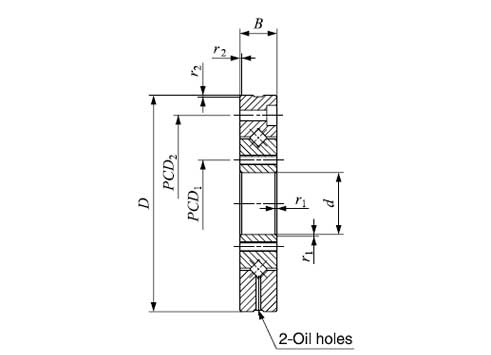

Boundary dim(mm)Boundary dim(d)20
Boundary dim(D)70
Boundary dim(B)12
Boundary dim(r1min(1))0.3
Boundary dim(r2min(1))0.3
Mounting holes(mm)Mounting holes(PCD1)28
Mounting holes(Inner ring Mounting holes)6-M3 through
Mounting holes(Outer ring Mounting holes)6-φ3.4 through
φ6.5 counter bore depth 3.3
Mounting holes(PCD2)57
Mounting dimensions(da)36.5
Mounting dimensions(Da)48.5
Basic dynamic load rating(N)Basic dynamic load rating(C)7600
Basic satic load rating(C0)8370
Shaft diameter(mm)20
