CRBF 3515 AT UU

CRBF 3515 AT UU Cross Cylindrical Roller Bearing

Specifications of CRBF 3515 AT UU Cross Cylindrical Roller Bearing


Shaft diameter(mm)35
Identification number(Two side seals type)CRBF3515ATUU
Weight(Ref.)(kg)0.66

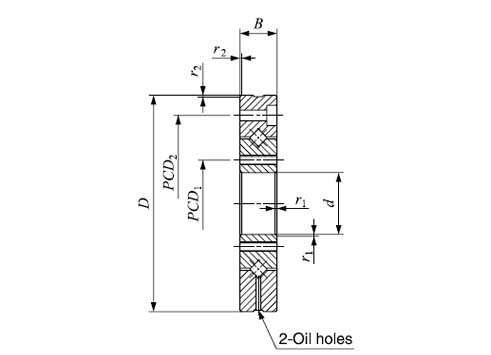

Boundary dim(mm)Boundary dim(d)35
Boundary dim(D)95
Boundary dim(B)15
Boundary dim(r1min(1))0.6
Boundary dim(r2min(1))0.6
Mounting holes(mm)Mounting holes(PCD1)45
Mounting holes(Inner ring Mounting holes)8-M4 through
Mounting holes(Outer ring Mounting holes)8-φ4.5 through
φ8 counter bore depth 4.4
Mounting holes(PCD2)83
Mounting dimensions(da)56
Mounting dimensions(Da)74
Basic dynamic load rating(N)Basic dynamic load rating(C)17300
Basic satic load rating(C0)20900
Shaft diameter(mm)35
