CRBF 5515 AT

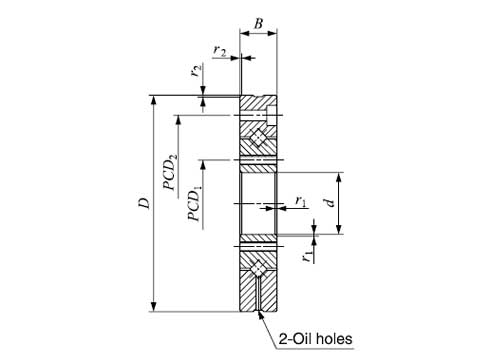

CRBF 5515 AT Cross Cylindrical Roller Bearing

Specifications of CRBF 5515 AT Cross Cylindrical Roller Bearing


Shaft diameter(mm)55
Identification number(Open type)CRBF5515AT
Weight(Ref.)(kg)0.96
Boundary dim(mm)Boundary dim(d)55
Boundary dim(D)120
Boundary dim(B)15
Boundary dim(r1min(1))0.6
Boundary dim(r2min(1))0.6
Mounting holes(mm)Mounting holes(PCD1)65
Mounting holes(Inner ring Mounting holes)8-M5 through
Mounting holes(Outer ring Mounting holes)8-φ5.5 through
φ9.5 counter bore depth 5.4
Mounting holes(PCD2)105
Mounting dimensions(da)76
Mounting dimensions(Da)94
Basic dynamic load rating(N)Basic dynamic load rating(C)20100
Basic satic load rating(C0)27700
Shaft diameter(mm)55
