CRBF 5515 AT UU

CRBF 5515 AT UU Cross Cylindrical Roller Bearing

Specifications of CRBF 5515 AT UU Cross Cylindrical Roller Bearing


Shaft diameter(mm)55
Identification number(Two side seals type)CRBF5515ATUU
Weight(Ref.)(kg)0.96

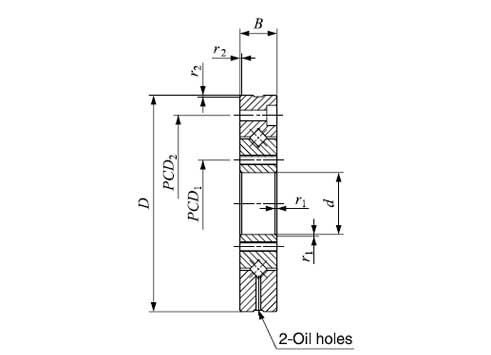

Boundary dim(mm)Boundary dim(d)55
Boundary dim(D)120
Boundary dim(B)15
Boundary dim(r1min(1))0.6
Boundary dim(r2min(1))0.6
Mounting holes(mm)Mounting holes(PCD1)65
Mounting holes(Inner ring Mounting holes)8-M5 through
Mounting holes(Outer ring Mounting holes)8-φ5.5 through
φ9.5 counter bore depth 5.4
Mounting holes(PCD2)105
Mounting dimensions(da)76
Mounting dimensions(Da)94
Basic dynamic load rating(N)Basic dynamic load rating(C)20100
Basic satic load rating(C0)27700
