CRBF 8022 AD

CRBF 8022 AD Cross Cylindrical Roller Bearing

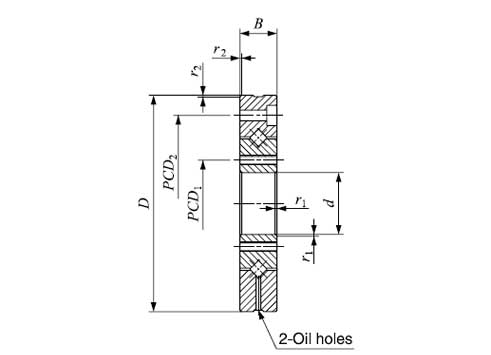

Specifications of CRBF 8022 AD Cross Cylindrical Roller Bearing


Shaft diameter(mm)80
Identification number(Open type)CRBF8022AD
Weight(Ref.)(kg)2.60
Boundary dim(mm)Boundary dim(d)80.00
Boundary dim(D)165.00
Boundary dim(B)22.00
Boundary dim(r1min(1))0.60
Boundary dim(r2min(1))1.00
Mounting holes(mm)Mounting holes(PCD1)97.00
Mounting holes(Inner ring Mounting holes)10-φ5.5 through
φ9.5 counter bore depth 5.4
Mounting holes(Outer ring Mounting holes)10-φ5.5 through
φ9.5 counter bore depth 5.4
Mounting holes(PCD2)148.00
Mounting dimensions(da)107.00
Mounting dimensions(Da)137.00
Basic dynamic load rating(N)Basic dynamic load rating(C)51100.00
Basic satic load rating(C0)72000.00
Shaft diameter(mm)80.00
