CRBF 8022 AT

CRBF 8022 AT Cross Cylindrical Roller Bearing

Specifications of CRBF 8022 AT Cross Cylindrical Roller Bearing


Shaft diameter(mm)80
Identification number(Open type)CRBF8022AT
Weight(Ref.)(kg)2.63

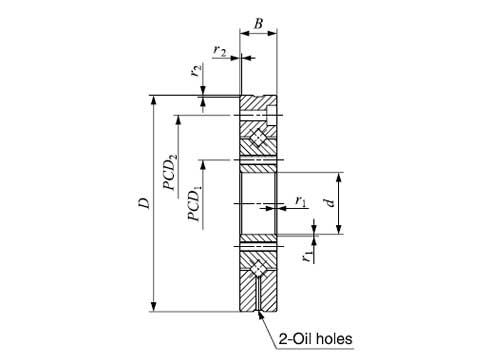

Boundary dim(mm)Boundary dim(d)80.00
Boundary dim(D)165.00
Boundary dim(B)22.00
Boundary dim(r1min(1))0.60
Boundary dim(r2min(1))1.00
Mounting holes(mm)Mounting holes(PCD1)97.00
Mounting holes(Inner ring Mounting holes)10-M5 through
Mounting holes(Outer ring Mounting holes)10-φ5.5 through
φ9.5 counter bore depth 5.4
Mounting holes(PCD2)148.00
Mounting dimensions(da)107.00
Mounting dimensions(Da)137.00
Basic dynamic load rating(N)Basic dynamic load rating(C)51100.00
Basic satic load rating(C0)72000.00
Shaft diameter(mm)80.00
