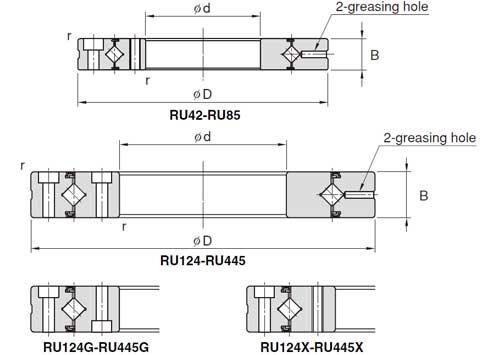

ITEM | RU42 | |
Dimensions(mm) | Dimensions(Inner diameter)(d) | 20 |
Dimensions(Outer diameter)(D) | 70 | |
Dimensions(Roller PCD)(dp) | 41.5 | |
Dimensions(Width)(B) | 12 | |
r | 0.6 | |
da | 37 | |
Da | 47 | |
Dimensions(Grease holes)(d) | 3.1 | |
Dimensions(Grease holes)(rmin) | 0.6 | |
Basic loading(KN) | Basic loading(C) | 7.35 |
Basic loading(C0) | 8.35 | |
Weight(kg) | 0.29 | |
Mounting holes(mm) | Mounting holes(PCD1) | 28 |
Mounting holes(Inner ring Mounting holes) | 6-M3 through | |
Mounting holes(PCD2) | 57 | |
Mounting holes(Outer ring Mounting holes) | 6-φ3.4 through, φ6.5 counterbore depth 3.3 |
