TLOR20/414

TLOR20/414 Four-point Contact Ball Slewing Ring

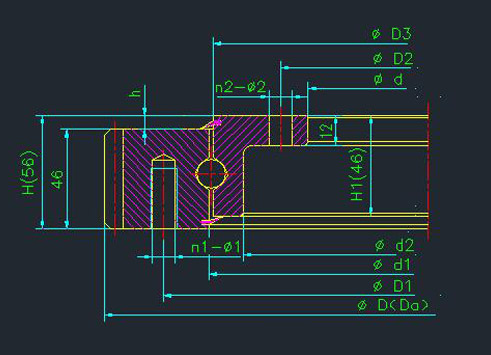

Specifications of TLOR20/414 Four-point Contact Ball Slewing Ring


DesignationExternal GearTLOR20/414 Four-point Contact Ball Slewing Bearing
Boundary DimensionD(Da)504
d304
H56
H146
h10
Mounting Hole SizeD1455
D2332
n110
n212
φ1M12
φ2φ18
Structure dimensionsd2375
d1415.5
D3412.5
Gear Datam5
z99
do495
x0
Wt(KG)30
