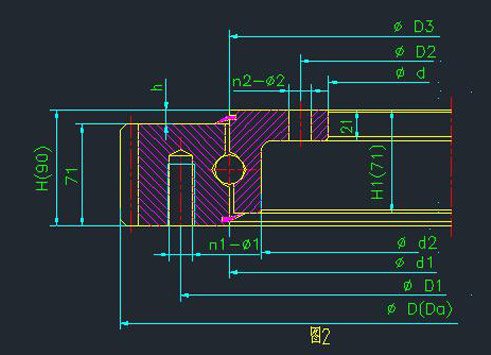

Designation | External Gear | TLOR30/955 Four-point Contact Ball Slewing Bearing |
Boundary Dimension | D(Da) | 1098 |
d | 805 | |
H | 90 | |
H1 | 71 | |
h | 19 | |
Mounting Hole Size | D1 | 1016 |
D2 | 845 | |
n1 | 30 | |
n2 | 30 | |
φ1 | M20 | |
φ2 | φ22 | |
Structure dimensions | d2 | 893 |
d1 | 955 | |
D3 | 955 | |
Gear Data | m | 9 |
z | 120 | |
do | 1080 | |
x | 0 | |
Wt(KG) | 165 |
